overtec parapet screwed on at the front

Recognize your advantages of overtec in just a few seconds

Overtec parapet 5 screwed on at the front

consists of a vertical, 40mm narrow wooden hybrid panel which is screwed to a concrete ceiling via two metal brackets in the foot area.

overtec as a subsequently screwed-on variant has the significant advantage that the entire parapet or individual parapet segments can be flexibly assembled at a later date. This leaves space for material to be fed into the building interior. After the interior work, the parapet gaps can be closed.

Here you can see how the minimal overtec parapet is installed with or without anchor rails.

The original from Austria
Languageless installation instructions and videos
Double post system
Galvanized steel components
Environmental declaration available
Alignment system that can accommodate panel expansion

substrates

Everything starts out easy: the first steps when moving the parapet.

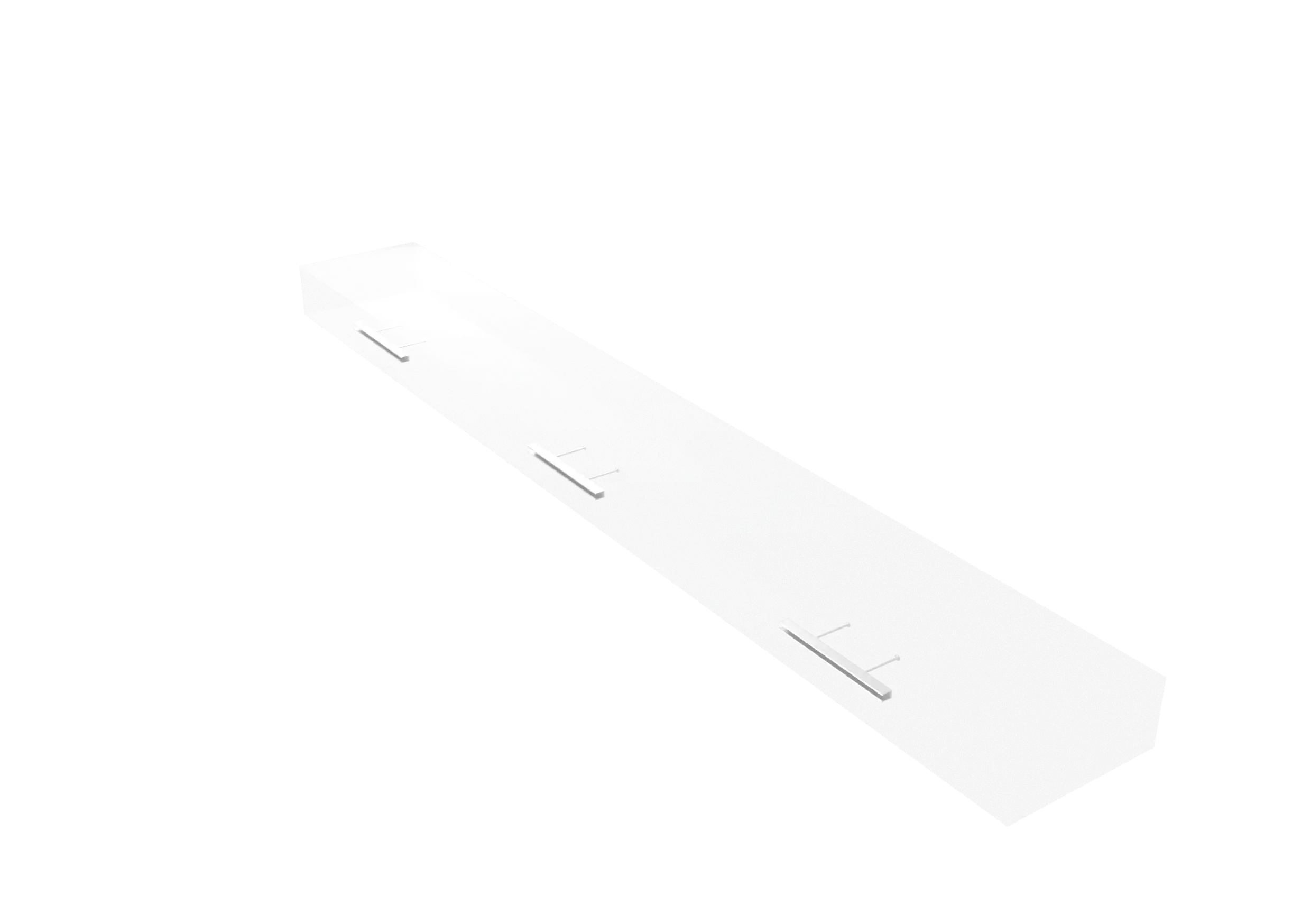

Parapet on precast concrete with inserted anchor rails

60sec Video

Parapet attached to precast concrete element using concrete screws

60sec Video

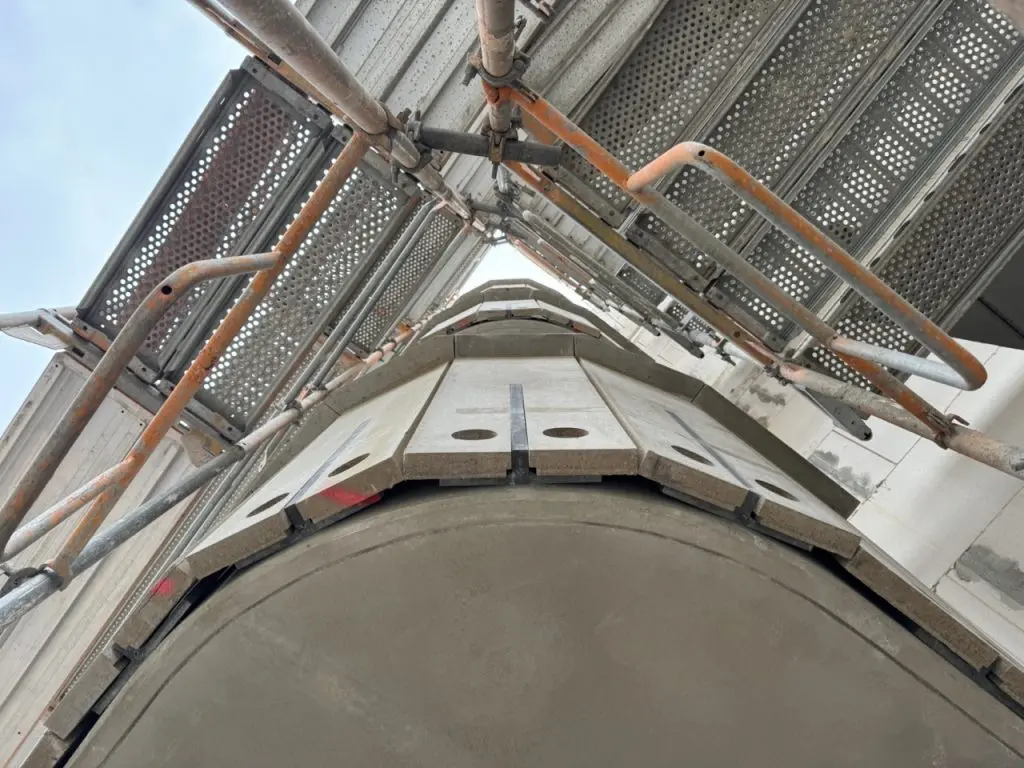

overtec Brüstung stirnseitig angeschraubt

overtec_Bruestung_auf_Betonfertigteil_45Grad

overtec_Bruestung_auf_Betonfertigteil_Abdeckung

overtec_Bruestung_auf_Betonfertigteil_Ankerschienen

overtec_Bruestung_auf_Betonfertigteil_Detailaufnahme_in_Berlin

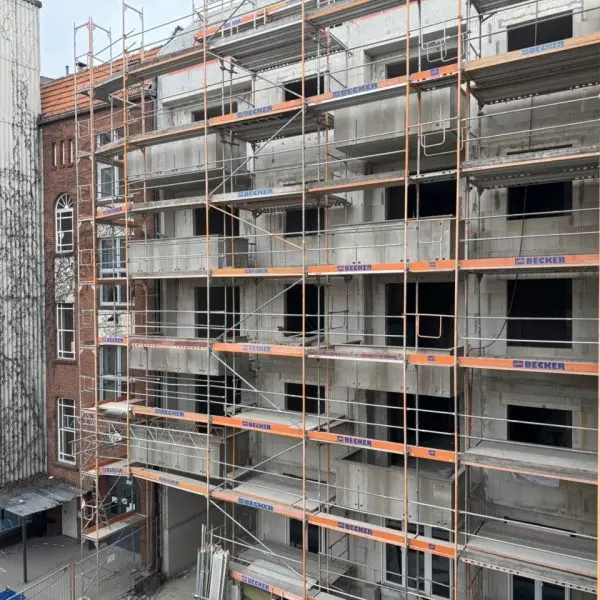

overtec_Bruestung_auf_Betonfertigteil_Fassade_in_Berlin

overtec_Bruestung_auf_Betonfertigteil_Fassade_Wien

overtec_Bruestung_auf_Betonfertigteil_Rundung

overtec_Bruestung_auf_Betonfertigteil_Fassadenbild

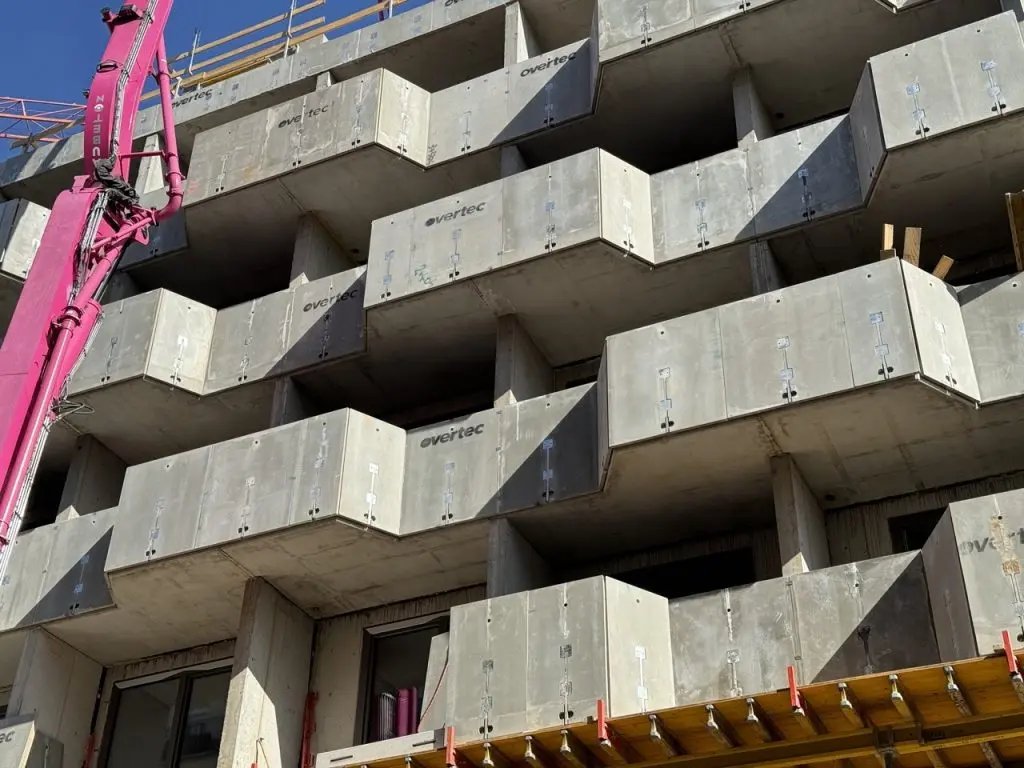

overtec_Bruestung_auf_Betonfertigteil_Fassadenbild_Wien

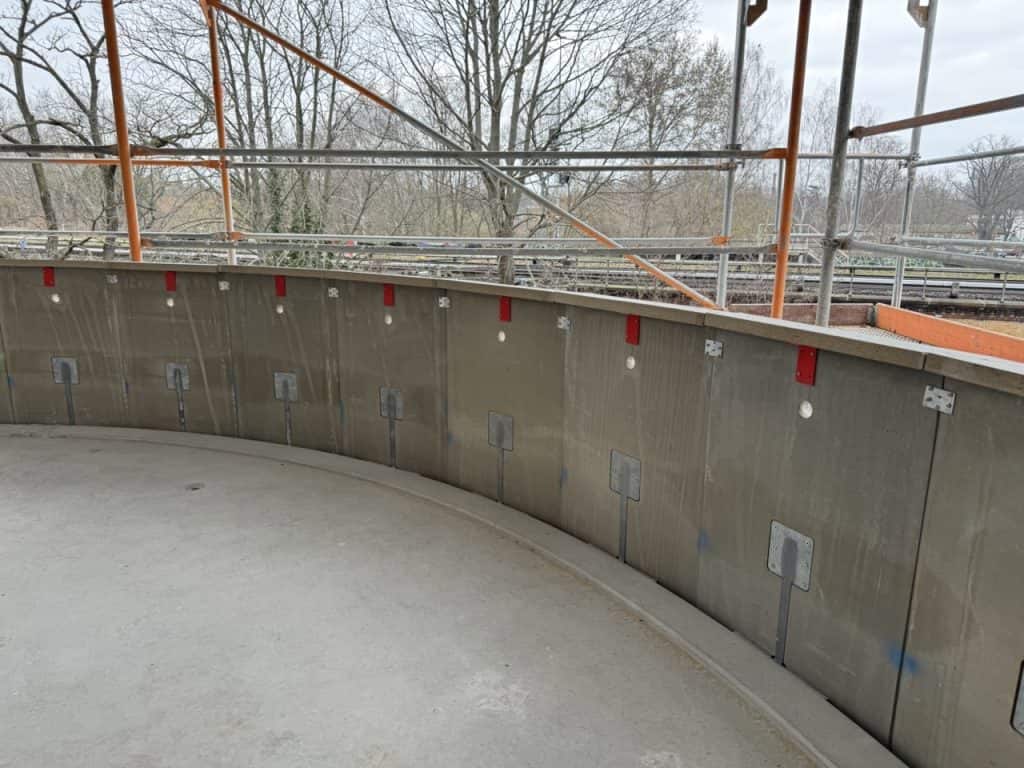

overtec_Bruestung_auf_Betonfertigteil_Rundung_Berlin

overtec parapet screwed on at the front

subsequently against precast concrete

The parapet usually has a length of 125cm. However, this can vary depending on whether a straight length or a curve is created or whether dimensionally accurate fitting elements are manufactured. The prepared anchor strips in the precast concrete part help with setting up the panels. A sub-overhang is also conceivable in order to meet requirements in terms of appearance or weather protection for the arcades or open spaces below.

Get in Touch

Here you can see how the largest overtec parapet is screwed on

Precast concrete part

The parapet can be designed with a sub-overhang that effectively protects the floors below from the weather. This is particularly relevant for open areas such as arcades or balcony areas. Optimized assembly times on the construction site are guaranteed if the anchor channels are positioned correctly in the precast factory. This offers significant advantages when installing the elements. However, if no anchor rails are installed, the overtec elements can also be attached to the concrete subsurface using a concrete screw. For this purpose, it is advisable to create a support for the overtec plates.

Our extensive collection of details will help you plan most efficiently.

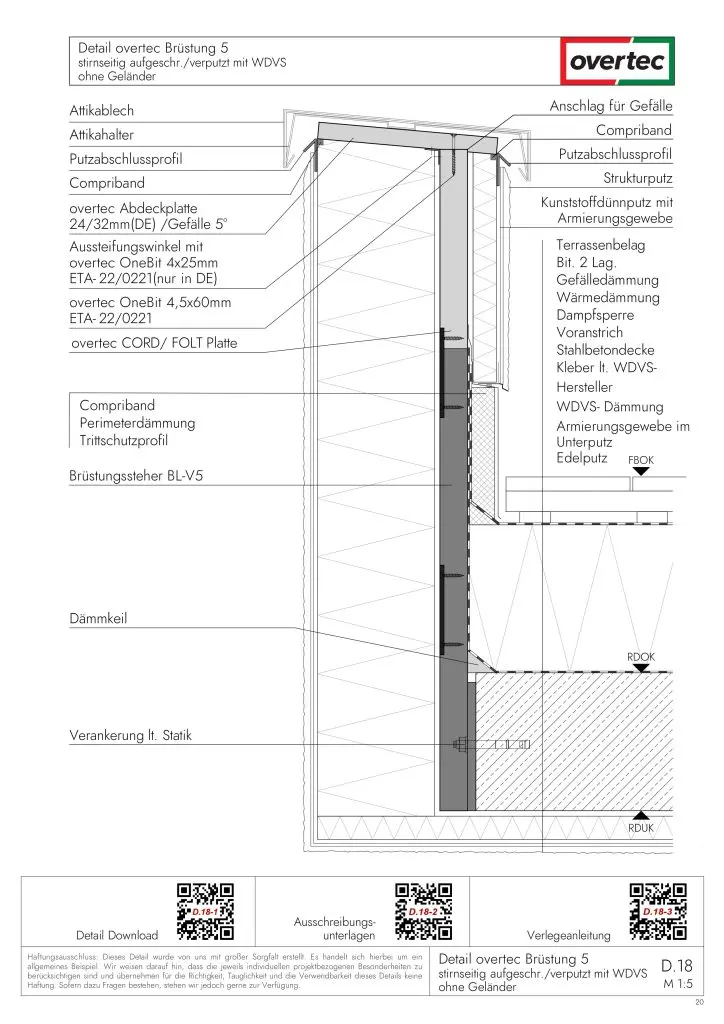

overtec parapet detail without railing

Every building starts with an idea. This idea is transformed into a plan that is then to be implemented. There are various planning frameworks, including standards, local conditions, structural requirements, design aspects and much more. Our goal is to relieve you of the work with our ready-made details and tender texts and to create an important basis for your project. You can use these materials to refine and expand your ideas.

Don’t hesitate to ask us about other file formats such as DWG or STEP.

Our extensive library of details for extremely efficient and correct planning

overtec parapet with glass railing connection.

For architects and planners looking for innovative solutions for balcony designs, the parapet detail might be worth considering. This sophisticated detail takes into account all important elements, from sealing and insulation to sheet metal and facade, to allow for a perfectly designed balcony. A standout feature is its user-friendly drag-and-drop functionality, which allows for easy integration into the plan and customization as needed. Contact us for different file formats or download the information you need directly from Ausschreib.de. Undoubtedly, the parapet detail represents an ideal solution for the contemporary architect or planner. Tender texts are also available on Ausschreib.de.
