Precast Concrete Walls: Types, Benefits, Construction, Thickness and Cost

Precast concrete walls are manufactured before installation, usually in a controlled factory or specialised production facility, and then transported to the construction site as finished or substantially finished building components.

This approach has changed the way many buildings are constructed. Instead of producing every reinforced concrete wall directly at the project site, manufacturers can produce repeatable wall elements under controlled conditions and deliver them when the structure is ready for installation.

The attraction is not simply speed. Precast construction changes the entire workflow:from reinforcement and mould preparation to curing, quality control, transportation, lifting and final connection. It can reduce wet work on site and improve production consistency, but it also requires earlier design coordination.

The right solution depends on the role of the wall. A structural wall carrying vertical or lateral loads has different requirements from a non-load-bearing exterior wall. Similarly, an interior wall, insulated façade panel and industrial enclosure may all use precast concrete but require different detailing. For building projects that require a well-designed roof edge, a precast wall system may also need to be coordinated with a suitable parapet system.

This article explains what precast concrete walls are, how they are manufactured, where they are used, how wall thickness and reinforcement are determined, how panels are connected and how precast systems compare with conventional cast-in-place construction.

Quick Answer: What Are Precast Concrete Walls?

Topic	Quick Answer
What are precast concrete walls?	Reinforced or unreinforced concrete wall components manufactured before being transported and installed in their final position.
How are they made?	Concrete is cast in prepared moulds containing reinforcement and embedded components, then cured, inspected and transported.
Where are they used?	Residential, commercial, industrial and infrastructure projects.
Can they be structural?	Yes. They can form load-bearing and lateral-load-resisting parts of a building when specifically engineered for that purpose.
Can they be exterior walls?	Yes. Exterior applications require coordinated insulation, joints, drainage and weather protection.
Can they be interior walls?	Yes. They can provide partitions, structural walls, cores and separation between spaces.
Main advantage	Controlled factory production combined with efficient site installation.
Main limitation	Design, logistics, lifting and connections must be coordinated early.
Are they stronger than traditional walls?	Not automatically. Performance depends on concrete, reinforcement, design, curing and connections.
How long do they last?	Properly designed and maintained systems can provide long service life, subject to exposure and project-specific requirements.

What Are Precast Concrete Walls?

A precast concrete wall is a wall element manufactured away from its final building position. It may be produced as a solid reinforced concrete panel, an insulated sandwich panel or another engineered configuration.

The defining characteristic is therefore the construction method, not simply the appearance of the wall. A precast wall can look similar to a cast-in-place wall once installed, but the manufacturing and installation sequence is fundamentally different.

In precast construction, reinforcement, moulds, concrete placement and curing are largely controlled before the element reaches the project site. The finished component is then transported, lifted and connected to the structure.

The term prefabricated precast concrete walls is often used for similar systems. In both cases, the objective is to manufacture a building component in advance so that less production work is required at its final installation location.

Why Are Precast Concrete Walls Important?

The biggest advantage of precast construction is the ability to separate manufacturing from site activities. Wall elements can be produced while excavation, foundations, structural frames or other trades are progressing.

This parallel workflow can reduce overall construction time on suitable projects. Instead of constructing formwork and waiting for concrete to cure at every wall location, completed elements can be delivered and installed according to a planned sequence.

Factory production can also provide more consistent working conditions. Reinforcement placement, concrete batching, mould preparation and curing are less exposed to the variability of an active construction site.

However, precast does not eliminate construction risk. It transfers some risks from site production to design coordination, transportation, lifting and connection engineering. A successful project manages both sides of that equation.

Factor	Potential Benefit	Requirement
Site production	Reduced wet work	Planned installation
Labour	Less repetitive site labour	Skilled lifting and connection work
Quality	Controlled factory environment	Formal quality control
Speed	Rapid panel installation	Early manufacturing coordination
Weather	Less production exposure	Installation still depends on conditions
Repetition	Efficient manufacturing	Standardised geometry
Logistics	Finished elements arrive ready	Transport and crane planning
Design	Repeatable components	Earlier design freeze

What Are Precast Concrete Walls Used For?

Precast concrete walls are used in buildings where concrete provides structural capacity, enclosure, fire resistance, acoustic mass, durability or architectural value.

In residential projects, they may form apartment walls, stair cores, façades and separating walls. Commercial buildings may use large wall panels around a structural frame, while industrial buildings frequently use precast systems for durable external enclosures.

The same concrete wall system can therefore have very different configurations depending on the building. A warehouse exterior wall may prioritise durability and rapid installation, while an apartment façade may place greater emphasis on insulation, waterproofing and architectural finish.

Application	Typical Function	Key Requirement
Apartment building	Structural/exterior wall	Load transfer and thermal performance
Office building	Exterior enclosure	Façade joints and appearance
Warehouse	Exterior wall	Wind, impact and durability
Industrial building	Structural/enclosure wall	Large panels and robust connections
Residential interior	Partition/separation	Fire and acoustic performance
Stair core	Structural wall	Vertical and lateral loads
Commercial façade	Architectural enclosure	Finish and dimensional accuracy
Infrastructure	Barrier/enclosure	Exposure and impact resistance

Types of Precast Concrete Walls

Not all precast walls perform the same function. Their design changes according to structural role, location, insulation requirements and architectural intent.

Solid panels are the simplest configuration and may be used as structural or enclosure elements. Insulated panels can combine concrete and thermal insulation, while architectural panels can incorporate controlled textures, colours and surface patterns.

Another important distinction is whether the wall is load-bearing. A structural panel needs engineered load paths into the foundation, floors and adjacent walls. A non-load-bearing panel still requires structural design for self-weight, wind and connection forces, but it does not form the primary vertical load path.

Wall Type	Typical Role	Main Advantage	Main Design Issue
Solid precast wall	Structural/enclosure	Robust construction	Thermal strategy
Insulated panel	Exterior envelope	Integrated insulation	Thermal bridges
Sandwich panel	High-performance façade	Multiple functions combined	Joint detailing
Architectural panel	Façade	Controlled appearance	Surface quality
Interior panel	Partition/core	Rapid installation	Fire/acoustic requirements
Load-bearing panel	Structural	Direct load transfer	Connection engineering
Non-load-bearing panel	Enclosure	Flexible façade application	Wind and restraint

Structural and Non-Structural Precast Walls

A structural wall transfers loads through the building. Depending on the structural system, these loads may include gravity loads from floors and roofs, lateral loads from wind or seismic action, and forces associated with the building’s overall stability.

The reinforcement is therefore designed around a defined load path. The panel cannot be engineered independently of the floor slabs, roof, foundation and adjacent wall connections.

Non-load-bearing panels have a different role. They can provide weather protection, separation or architectural enclosure while the main structural frame consists of columns and beams.

However, “non-load-bearing” does not mean “structurally unimportant.” The panel still has self-weight, wind forces and handling stresses, and its anchors must transfer those forces safely to the supporting structure.

Characteristic	Structural Precast Wall	Non-Structural Precast Wall
Main role	Load transfer/stability	Enclosure/separation
Vertical loads	May carry building loads	Generally self-weight only
Lateral role	May contribute to stability	Usually designed for wind/restraint
Connection design	Critical load path	Critical stability/interface
Foundation interaction	Often significant	Usually indirect
Typical use	Cores, structural walls	Façades, partitions

Exterior vs Interior Precast Walls

An exterior wall must control more than structural loads. It forms part of the building envelope and therefore has to address rain, air movement, thermal transfer, solar exposure and long-term weathering.

Exterior precast systems may require insulation, drainage cavities, sealed joints, flashings and carefully detailed connections. A concrete panel alone does not automatically constitute a complete high-performance building envelope.

An interior wall normally faces fewer weather-related demands but may have significant fire, acoustic and structural requirements. For example, an apartment separating wall may need to control airborne sound while maintaining the required fire performance.

This difference means the same panel manufacturing technology can produce substantially different wall systems.

Requirement	Exterior Wall	Interior Wall
Weather resistance	High importance	Usually limited
Thermal insulation	Often essential	Project dependent
Waterproofing	Critical	Generally limited
Acoustic performance	Important	Often significant
Fire resistance	Project dependent	Frequently important
Surface finish	Architectural/functional	Functional/architectural

Precast Concrete Wall Thickness

There is no universal wall thickness for precast concrete walls. Thickness is determined by structural loads, reinforcement, durability, fire resistance, acoustic requirements, thermal performance, manufacturing limitations and handling.

A structural wall may need additional thickness to accommodate reinforcement and connections. An exterior wall may require an insulated build-up rather than simply increasing concrete thickness.

Panel thickness also affects weight. Every additional millimetre of concrete increases the mass that must be transported and lifted. For large panels, logistics can therefore become a design constraint.

Design Consideration	Influence on Wall Thickness
Structural loading	Higher loads may require greater section capacity
Reinforcement	Requires adequate concrete cover and space
Fire resistance	May require additional concrete protection
Acoustic performance	Greater mass can improve sound insulation
Thermal performance	Usually better addressed with insulation
Durability	Exposure affects cover and concrete specification
Handling	Excessive thickness increases panel weight
Connections	Anchors and embedded components need space

Panel dimensions should consequently be developed together with structural design and logistics. A wall that works on paper may still be impractical if its weight exceeds the project’s transport or lifting capability.

How Are Precast Concrete Walls Made?

The factory production process begins with approved drawings defining panel dimensions, openings, reinforcement, embedded components and lifting points.

A mould is prepared and checked before reinforcement is installed. Connection plates, sleeves, anchors and other embedded items are positioned before concrete is placed.

Concrete is then poured and compacted. The element undergoes a controlled curing process until it reaches the required condition for demoulding and handling.

Quality control continues after demoulding. Dimensions, surface condition, embedded components and visible defects should be checked before the panel is released for storage or transportation.

Production Stage	Main Purpose
Design review	Confirm geometry and interfaces
Mould preparation	Establish accurate dimensions
Reinforcement	Provide structural capacity and durability
Embedded items	Create connection and service interfaces
Concrete placement	Form the wall element
Compaction	Reduce voids and improve density
Curing	Develop required concrete properties
Demoulding	Release finished panel safely
Inspection	Verify quality and dimensions
Storage	Protect panel before installation

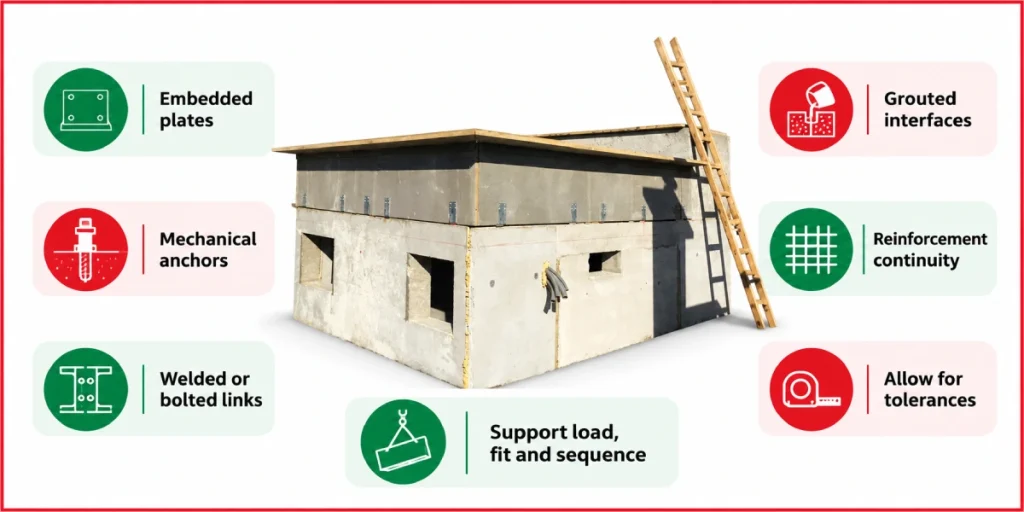

Precast Wall Connections

Connections are among the most important parts of a precast system. The wall itself may have excellent concrete properties, but inadequate connections can compromise the entire structural or envelope system.

Depending on the design, panels may be connected using embedded plates, mechanical anchors, reinforcement continuity, welded components, bolted connections or grouted interfaces. The selected method depends on loads, tolerances, access and construction sequence.

Connections also have to accommodate practical installation tolerances. A system designed with zero tolerance is not realistic for construction. Proper detailing provides enough adjustment to achieve the required final position without compromising structural performance.

Precast Concrete Wall Installation

The installation sequence begins before the first panel arrives. The supporting structure, access route, crane position, lifting equipment and temporary storage areas should already be prepared. This is one of the main differences between precast construction and conventional wall construction: installation is highly dependent on logistics.

Each panel is lifted using the designated lifting points and positioned against the previously established survey references. Temporary bracing may be required until the permanent connections are completed and the panel has adequate stability.

After alignment, the permanent connection is installed and checked. Only then should the installation team proceed with joint sealing, insulation interfaces and other envelope work.

Installation Stage	Main Control
Delivery	Panel identification and damage inspection
Unloading	Safe lifting arrangement
Survey	Verify support and reference points
Lifting	Use designed lifting points
Positioning	Check alignment and tolerances
Temporary stability	Brace where required
Permanent connection	Complete approved connection detail
Joint treatment	Seal and weatherproof
Final inspection	Verify position and interfaces

Waterproofing, Drainage and Thermal Performance

For an exterior wall, the concrete panel is only one part of the building envelope. Joints between panels, connections to slabs and roofs, window interfaces and penetrations must all be designed to control water.

Horizontal joints require particular attention because rainwater can accumulate if there is no effective drainage path. Depending on the wall system, sealants, membranes, flashings and drainage cavities may work together to keep water away from the interior.

Thermal performance is another important consideration. Reinforced concrete can provide substantial thermal mass, but it is not an efficient insulation material by itself. Exterior wall systems commonly require continuous insulation or an integrated insulated panel configuration.

Connections can create thermal bridges when metal components or concrete sections bypass the insulation layer. The best solution is established during design rather than attempting to correct the problem after installation.

Fire Resistance and Acoustic Performance

One reason precast concrete walls are widely used in multi-unit and commercial buildings is their substantial mass and non-combustible concrete construction. However, the fire performance of a complete wall depends on the entire assembly, including joints, connections, penetrations and finishes.

Required fire resistance varies according to occupancy, building height, compartmentation strategy and applicable regulations. A wall should therefore be specified against the project’s required fire-performance classification rather than assuming that every concrete panel has the same rating.

Acoustic performance can also be a major benefit of concrete wall systems. Their mass can help reduce airborne sound transmission, particularly between apartments or other spaces requiring separation.

However, sound can bypass a wall through joints, floors, ceilings and service penetrations. Acoustic performance should therefore be evaluated as part of the complete construction rather than from panel mass alone.

Real Construction Examples

How are precast concrete walls used on real projects? These three examples show how they work in an apartment building, an office, and a warehouse.

Residential Apartment Project

Consider an eight-storey apartment building using repetitive precast exterior and interior wall elements.

A typical exterior panel might be approximately 3.0 m wide and 2.8 m high, with window openings incorporated during factory production. Interior structural walls can be produced at the same time, allowing the building structure to progress floor by floor.

The principal benefits are repetition and reduced site wet work. The main risks are dimensional coordination, façade joints, window interfaces and connection tolerances.

Commercial Office Building

A commercial office could use architectural precast wall panels approximately 5:6 m wide and 3:4 m high around a steel or reinforced-concrete frame.

Larger panels reduce the number of façade joints and can create a consistent architectural appearance. However, their increased weight requires careful transport and crane planning.

The project team should therefore establish maximum panel size from both architectural and logistical considerations rather than choosing dimensions solely from the façade elevation.

Industrial Warehouse

A warehouse may use large prefabricated concrete walls as a durable external enclosure.

The system can be particularly effective where the building has repetitive elevations and large areas of wall. Panels can be installed progressively while other parts of the project continue.

For this application, impact resistance, wind loading, durability and rapid installation may be more important than complex architectural finishes. Door openings, roof connections and service penetrations still need to be coordinated before production.

Common Mistakes in Precast Concrete Wall Construction

Problems often arise when precast walls are treated as individual products rather than components of a complete structural and envelope system.

One common mistake is freezing panel production before openings, connections and service penetrations have been fully coordinated. Modifying a finished factory element on site is usually more difficult than resolving the issue during detailing.

Another problem is underestimating tolerances. Structural construction is never perfectly dimensionally exact, so connections need sufficient adjustment capacity to accommodate realistic deviations.

Mistake	Likely Consequence	Better Approach
Late design changes	Rework or replacement	Freeze drawings before production
Poor logistics planning	Delivery delays	Plan transport early
Incorrect lifting points	Panel damage or safety risk	Engineer lifting system
Ignoring tolerances	Alignment problems	Establish tolerance strategy
Poor joint detailing	Water leakage	Coordinate complete envelope detail
Thermal bridge at connection	Increased heat transfer	Maintain insulation continuity
Uncoordinated openings	Site modification	Coordinate BIM/shop drawings
Inadequate temporary bracing	Stability risk	Follow installation engineering

What Do Precast Concrete Walls Cost?

The cost of precast concrete walls includes considerably more than concrete and reinforcement. Moulds, factory production, finishes, embedded components, transport, lifting, connections and installation all influence the final project cost.

Repetition generally improves the economics. A manufacturer can reuse moulds and production setups across many similar panels. Highly customised projects with numerous one-off shapes may not achieve the same efficiency.

Transport distance is another major variable. A heavy panel manufactured far from the project may require specialised vehicles and additional handling. Similarly, restricted site access can increase crane and installation costs.

Lifecycle cost should also be considered. Reduced site labour, faster enclosure, controlled quality and lower maintenance requirements can offset a higher initial component cost in suitable projects.

Cost Factor	Influence
Panel quantity	Repetition can reduce unit production cost
Geometry	Complex moulds increase manufacturing effort
Reinforcement	Affects material and fabrication
Finish	Architectural finishes increase requirements
Panel weight	Affects transport and lifting
Distance	Increases logistics cost
Connections	Complex systems increase installation effort
Site access	Can affect crane and delivery costs
Design changes	Particularly expensive after production
Lifecycle	Maintenance and durability affect long-term value

Traditional vs Prefabricated Concrete Walls

Are prefabricated concrete walls better than traditional walls? It depends on your project. See how both methods compare on repetition, logistics, and changes after casting.

Factor	Traditional Cast-in-Place Wall	Prefabricated Concrete Wall
Production	On site	Factory/off-site
Formwork	Project-specific	Reusable production moulds
Site labour	Higher	Reduced for wall manufacturing
Construction sequence	More sequential	Manufacturing and site work can overlap
Quality control	Site dependent	Controlled factory environment
Weather exposure	Higher	Lower during production
Design flexibility	Higher during construction	Earlier coordination required
Transport	Raw materials	Finished wall elements
Crane dependency	Usually lower	Often significant
Repetition	Moderate	Excellent
Modification after casting	Relatively flexible before final completion	Difficult after production

Precast Concrete Wall Checklist

How do you plan a precast concrete wall project step by step? Follow these checklists for design, construction, and inspection to install precast walls safely and correctly.

Architect Checklist

• Define whether the wall is structural or non-structural.
• Establish panel dimensions and grid.
• Coordinate openings and penetrations.
• Select required surface finish.
• Coordinate insulation and thermal bridges.
• Detail joints and waterproofing.
• Review fire and acoustic requirements.
• Confirm transport limitations.

Construction Checklist

• Confirm delivery route.
• Verify crane capacity and lifting radius.
• Prepare supporting surfaces.
• Survey connection locations.
• Establish installation sequence.
• Check lifting equipment.
• Provide temporary bracing where required.
• Complete permanent connections before removing temporary supports.

Inspection Checklist

• Check panel identification.
• Inspect for transport damage.
• Verify dimensions and alignment.
• Inspect connection hardware.
• Check joint sealing.
• Verify insulation continuity.
• Document deviations and repairs.

Standards, Codes and Safety

The applicable requirements depend on the project’s jurisdiction and structural system. European projects may involve relevant EN and DIN standards and Eurocodes, while projects in the United States may be designed under the IBC and associated standards.

Fire resistance, structural loading, concrete specification, reinforcement, lifting operations and temporary stability must all be addressed through the applicable project standards. OSHA requirements may apply to U.S. construction projects, particularly for lifting and work at height.

The manufacturer’s production controls should also be aligned with the project’s specifications and quality requirements. This article is educational and should not replace project-specific structural calculations, approved drawings or regulatory advice.

Lifecycle Performance of Precast Concrete Walls

A well-designed precast wall can provide long service life because concrete is inherently robust and factory production can provide consistent material and dimensional control.

Long-term performance nevertheless depends heavily on exposure conditions. Reinforcement cover, concrete quality, moisture, freeze-thaw exposure where applicable, joint maintenance and water management all influence durability.

The connection and joint strategy can become the maintenance-sensitive part of the system. Sealants, membranes and exposed interfaces may require inspection and eventual replacement even when the concrete panel itself remains structurally sound.

Lifecycle Stage	Key Consideration
Design	Correct exposure and durability specification
Production	Concrete and reinforcement quality
Installation	Correct connections and alignment
Operation	Water management and joint condition
Maintenance	Sealants, joints and exposed interfaces
Long term	Repairability and replacement access

Overtec and the Prefabricated Construction Approach

The logic behind precast construction also applies to modern prefabricated building-envelope components. Moving repetitive manufacturing into a controlled environment can reduce site activities and improve production consistency.

For suitable Overtec applications, factory production is intended to provide faster installation, reduced site labour and reduced dependence on highly skilled labour at the installation stage. Factory precision can improve repeatability and help make project scheduling more predictable.

Overtec states a potential reduction of up to 67% in CO₂ emissions compared with the relevant conventional construction approach. Its system approach also aims to improve waterproofing integration, reduce thermal bridging and reduce weather dependency during manufacturing.

Where a slim parapet or edge system is appropriate, reduced profile thickness can provide more usable balcony or terrace space. Taken together, factory precision, reduced site work and predictable installation can lower construction risk and support improved lifecycle performance.

Frequently Asked Questions

Have questions about precast concrete walls? Here are quick, easy answers on production, advantages, strength, and how they compare with cast-in-place walls.

Conclusion

Precast concrete walls provide a practical alternative to conventional cast-in-place construction when a project benefits from controlled factory production, repetitive components and rapid installation.

Their performance depends on much more than the concrete itself. Wall thickness, reinforcement, connections, joints, waterproofing, insulation, fire resistance, transportation and lifting must all be considered as one coordinated system.

For repetitive residential, commercial and industrial projects, precast construction can reduce site wet work, improve construction efficiency and provide consistent factory-produced components. For highly variable projects, cast-in-place construction may retain an advantage because it offers greater flexibility during construction.

The most effective decision is therefore based on the complete lifecycle of the wall:from design and factory production through transportation, installation, operation and maintenance.
