A parapet expansion joint is a deliberate separation or movement-accommodating connection used where a parapet or roof-edge construction needs to accommodate structural, thermal, shrinkage or differential movement.
It is easy to underestimate this detail. A parapet may look like a simple vertical wall at the edge of a flat roof, but it is connected to several systems that move differently. The structural frame expands and contracts, concrete shrinks, masonry responds to temperature and moisture, the roof membrane moves with its substrate, and metal coping expands significantly with temperature.
If these movements are restrained by a rigid connection, cracking can occur. Once a crack develops at the roof edge, waterproofing becomes vulnerable. Water can enter the joint, insulation can become wet, finishes can deteriorate and repeated movement can progressively damage the junction.
The challenge is therefore not simply creating a gap. A properly designed parapet movement joint must accommodate the expected movement while maintaining structural stability, weather protection, waterproofing continuity and, where relevant, fire and acoustic performance.
This guide explains where expansion joints are used, how a roof parapet expansion joint works, what a good movement detail should contain, how waterproofing is handled, what mistakes commonly occur and how conventional and prefabricated approaches compare.
Quick Answer: What Is a Parapet Expansion Joint?
A parapet expansion joint is a designed movement zone that allows adjacent sections of a parapet or roof-edge construction to move without transferring excessive stress into the wall, roof structure or waterproofing system.
| Topic | Quick Answer |
| What is a parapet expansion joint? | A controlled movement joint that allows sections of the parapet to move independently. |
| Why is it needed? | To accommodate thermal, structural, shrinkage or differential movement. |
| Where is it used? | At selected parapet, roof-edge, wall and structural movement locations. |
| Main risk if omitted | Cracking, membrane damage, water ingress and uncontrolled deformation. |
| Does every parapet need one? | No. Requirement depends on geometry, materials, structure, movement and project design. |
| What must cross the joint? | Waterproofing and other envelope systems must accommodate movement without losing continuity. |
| Typical protection | Flexible waterproofing, compressible filler, sealant or a proprietary joint cover, depending on the detail. |
| Who determines the design? | The project design team based on structural movement, envelope requirements and applicable standards. |

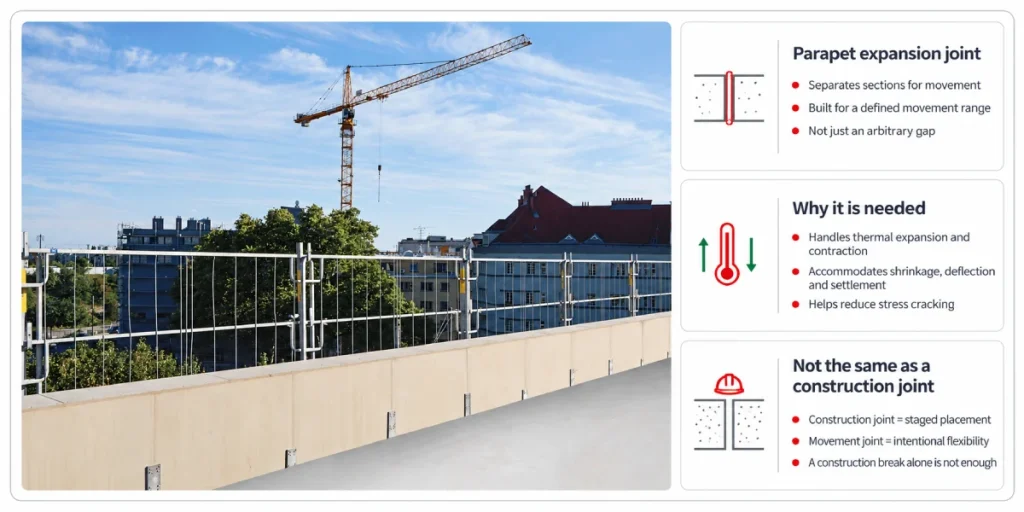

What Is a Parapet Expansion Joint?
A parapet expansion joint separates two construction sections so they can move relative to each other. It may be formed through the parapet wall, through adjacent structural elements, or as part of a larger building movement joint that continues from the structure into the roof and façade.
The term “expansion” can be slightly misleading because the joint may need to accommodate several types of movement. Temperature changes, concrete shrinkage, structural deflection, settlement and differential movement between materials can all influence the joint.
The important principle is that the joint must be designed for the expected movement range, rather than simply providing an arbitrary gap. A joint that is too narrow can close before the expected movement is reached, while an oversized or poorly detailed joint can create unnecessary waterproofing and architectural problems.
Why Do Parapets Need Movement Joints?
Parapets are exposed to temperature changes on a daily and seasonal basis. A long parapet can therefore expand and contract repeatedly, particularly when it is constructed from materials with relatively high thermal expansion or when large temperature differences occur between exposed and shaded surfaces.
Concrete introduces another source of movement. Fresh concrete undergoes drying shrinkage and temperature-related changes, while the structural frame itself may deflect under load. Masonry and finishes can respond differently again.
If the parapet is restrained at multiple locations without a suitable movement strategy, stresses can accumulate. The resulting cracks may appear small initially but become significant where they intersect waterproofing, coping or façade finishes.
Expansion Joint vs Construction Joint
A construction joint is primarily related to how concrete or another material is placed in separate stages. It does not automatically provide the movement capacity of a properly designed expansion joint.
A movement joint, by contrast, is intentionally detailed to permit relative movement. The materials on either side are not simply treated as though they were one continuous rigid element.
Confusing these two types of joints is a common source of problems. A construction break that looks like a joint on a drawing may have insufficient width, reinforcement continuity or flexibility to accommodate the movement actually expected.
Why Is a Parapet Movement Joint Important?
The parapet is part of the building envelope, so structural movement and waterproofing cannot be separated. A crack through the parapet may also become a pathway for water, particularly where the crack reaches a membrane termination or coping connection.
Movement can also affect adjacent finishes. Render, brickwork, stone, metal coping and sealants each respond differently to temperature and deformation. A joint that accommodates movement in the structural wall but ignores the external finish simply transfers the problem to another layer.
For this reason, a parapet joint detail needs to be coordinated across the entire build-up. The structural joint, insulation, waterproofing, parapet wall flashing, coping and façade finish should all be considered together.
| Movement Source | Typical Effect at Parapet | Design Response |
| Temperature | Expansion and contraction | Movement allowance |
| Concrete shrinkage | Dimensional reduction and cracking | Appropriate jointing and reinforcement |
| Structural deflection | Relative displacement | Flexible connection/detail |
| Settlement | Differential movement | Structural movement strategy |
| Material differences | Differential expansion | Separation or flexible interface |
| Wind/loading | Local deformation | Structural design and connection control |
Thermal Movement
Long roof edges can experience significant temperature variation. A parapet exposed to direct sunlight may become substantially warmer than the same construction in shade, producing repeated expansion and contraction.
The magnitude depends on material properties, length, temperature range, restraint and construction geometry. It should therefore be calculated or assessed for the actual project rather than assumed from a generic joint spacing.
Metal coping is particularly important because it can move independently from the masonry or concrete beneath it. A rigidly fixed coping system may therefore need its own movement strategy even when the parapet structure has been properly jointed.
Structural and Differential Movement
A parapet structural movement problem can occur when the roof edge moves differently from the wall or frame supporting it. This is particularly relevant where the parapet crosses structural zones or where different structural systems meet.
Differential movement can also occur between materials. For example, a masonry parapet attached to a reinforced concrete structure does not necessarily respond in exactly the same way as the concrete.
The movement joint must therefore be positioned and detailed according to the structural behaviour of the building, rather than simply placed at convenient architectural locations.
Shrinkage and Deformation
Concrete and cementitious materials can experience shrinkage after installation. Long uninterrupted sections may therefore develop cracking if movement is excessively restrained.
A parapet deformation joint can help control where movement occurs, making it more predictable and easier to waterproof and finish.
The joint does not eliminate movement. Its purpose is to give that movement a controlled location and provide compatible materials around it.
Where Should a Parapet Expansion Joint Be Located?
The location of a parapet expansion joint depends on the building’s structural grid, parapet length, material, geometry and expected movement. There is no single universal spacing that can safely be applied to every project.
Joints are commonly considered where a building already contains a structural movement joint. In such cases, the roof, parapet and façade often need to maintain the same movement line so that one part of the envelope does not restrain another.
Changes in building geometry can also influence joint locations. Long straight parapets, changes in height, changes in material and transitions between different structural systems should all be reviewed during design.
| Location | Why It May Require Attention |
| Structural movement joint | Building sections may move independently |
| Long parapet | Accumulated thermal movement |
| Change in structural system | Differential movement |
| Material transition | Different movement characteristics |
| Change in building height | Different deformation behaviour |
| Roof-to-wall movement joint | Wall and roof may move differently |
| Complex corner | Movement concentration |
Roof-to-Parapet Expansion Joint
A roof to parapet expansion joint is particularly important when the movement joint extends through the building structure and reaches the roof edge.
The waterproofing membrane cannot simply be cut at the joint and left exposed. It needs a flexible, watertight transition capable of accommodating the expected movement.
The same principle applies to insulation and protection layers. The joint should remain identifiable through the construction build-up so that later trades do not accidentally bridge it with rigid materials.
Roof Edge Movement Joint
A roof edge movement joint should be coordinated with the roof membrane, drainage falls and edge protection. Water must not be allowed to accumulate directly over a vulnerable movement connection.
The position of the joint can also affect membrane detailing. If the joint is located near a drain, outlet or penetration, additional coordination may be necessary to avoid conflicting movement and drainage requirements.
The final arrangement should be documented clearly enough that the roofing contractor understands which components are intended to move.
What Does a Parapet Expansion Joint Detail Include?
A good parapet expansion joint detail shows both sides of the joint and the components that allow movement between them. It should make clear which materials are flexible, which are structural and which must remain separated.
Typical components may include a designed joint gap, compressible material, flexible sealant, waterproofing membrane, flashing and a protective or architectural joint cover. The actual specification depends on the building system and movement requirements.
The detail should also account for installation tolerances. A theoretically correct joint can fail if the actual gap is inconsistent or if rigid mortar, render, insulation adhesive or other materials unintentionally bridge the movement zone.
| Component | Function |
| Movement gap | Provides space for relative movement |
| Compressible filler | Controls the joint cavity |
| Flexible sealant | Provides weather sealing |
| Waterproofing membrane | Maintains roof watertightness |
| Flashing | Protects exposed junction |
| Joint cover | Protects and finishes the opening |
| Insulation | Maintains thermal continuity where appropriate |
| Fixings | Secure components without unnecessarily restraining movement |

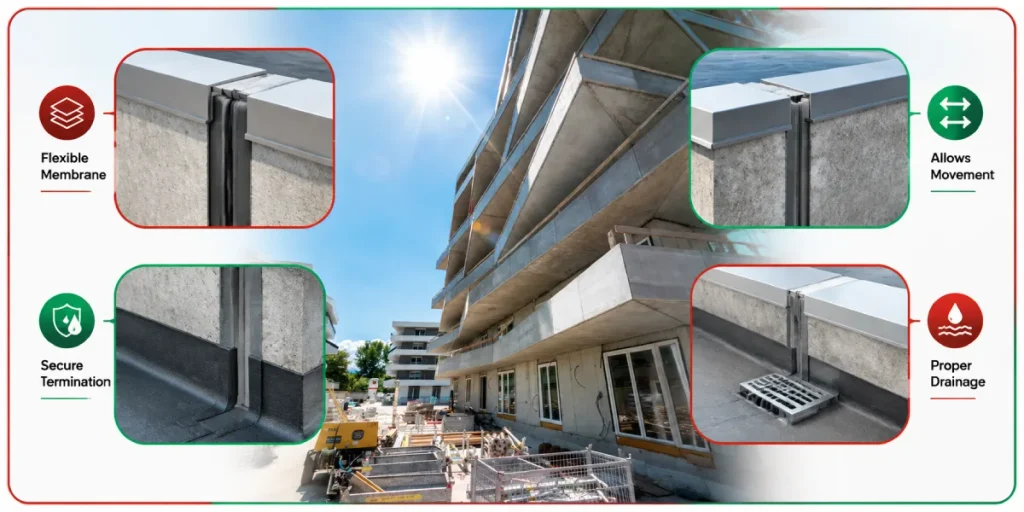

Waterproofing a Parapet Expansion Joint
Parapet expansion joint waterproofing is one of the most critical parts of the detail because the joint is deliberately designed to move. A rigid waterproofing layer cannot simply be carried continuously across a moving gap without allowing for that movement.
The roof membrane should therefore be detailed so that it can accommodate the expected displacement without tearing, peeling or becoming detached from its termination. Depending on the roof system, this may involve a flexible membrane configuration, formed movement loop, proprietary joint system or another manufacturer-approved solution.
The joint should also be protected from standing water. Falls, drainage outlets and membrane terminations need to be coordinated so that the movement joint does not become a weak point where water collects.
Roof Expansion Joint Waterproofing
A roof expansion joint waterproofing detail must accommodate movement in more than one direction where necessary. The joint may open and close, while adjacent roof surfaces can also experience differential movement.
The waterproofing system therefore needs sufficient flexibility and secure termination on both sides. The exact configuration should follow the membrane manufacturer’s requirements and the expected movement of the joint.
The most important construction principle is simple: do not bridge a movement joint with rigid materials that prevent the designed movement from occurring.
Parapet Expansion Joint Waterproofing
At the parapet, waterproofing may need to turn vertically before terminating beneath flashing or coping. This creates a more complicated three-dimensional condition than a simple horizontal roof joint.
The vertical membrane should remain protected and securely terminated while allowing the parapet sections to move independently. Flashing and coping should also be detailed so that they do not lock the two sides together.
A joint that is structurally correct but waterproofed incorrectly can still become a long-term building-envelope failure.
Parapet Expansion Joint Cover
A parapet expansion joint cover protects the movement gap from weather, debris and physical damage while allowing the underlying construction to move.
The cover may be visible as part of the façade or concealed beneath a coping arrangement. Its appearance, width and fixing method depend on the architectural design and the required movement capacity.
The cover must not accidentally convert a flexible joint into a rigid connection. Fixings should normally be arranged so that the cover can accommodate the intended movement rather than restraining it.
| Cover Type | Typical Application | Main Consideration |
| Metal cover | Exposed parapet or coping | Thermal movement |
| Flexible cover | High movement requirement | Durability and compatibility |
| Proprietary joint system | Complex envelope junction | Manufacturer movement range |
| Concealed membrane detail | Integrated roof edge | Installation quality |
| Coping-integrated cover | Architectural parapet | Movement and waterproofing |

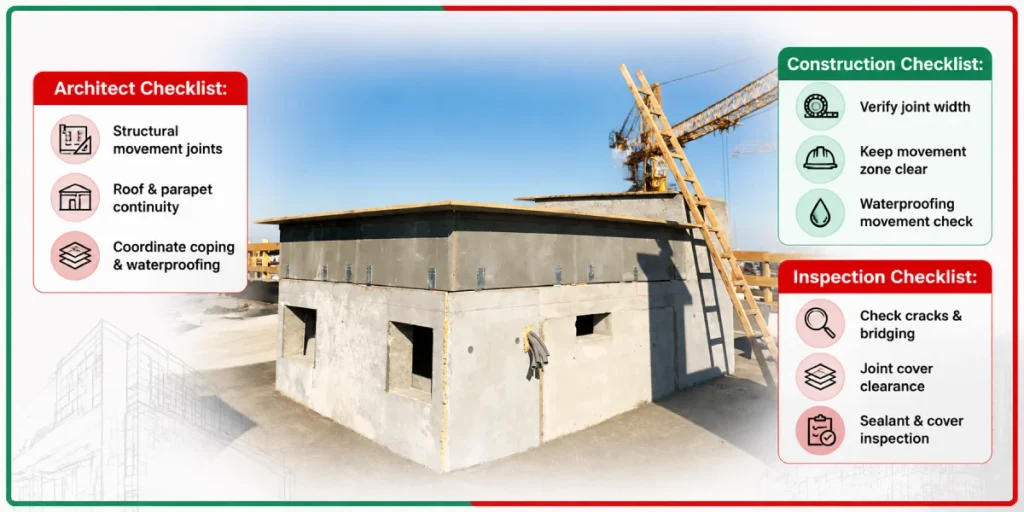

Construction Sequence for a Parapet Movement Joint
Construction sequencing matters because several trades can unintentionally compromise the movement zone. The joint should be established before waterproofing, insulation, coping and finishes are installed.
The structural team first forms the movement separation according to the approved design. The roofing and façade trades then continue the joint through their respective systems without filling it with rigid material.
A final inspection should confirm that the joint remains continuous from the structural element through the envelope. This is particularly important before the joint becomes concealed.
| Stage | Key Action |
| Structural work | Form the designed movement gap |
| Parapet construction | Maintain separation between sections |
| Insulation | Avoid rigid bridging |
| Waterproofing | Install movement-capable membrane detail |
| Flashing | Maintain weather protection |
| Coping | Allow independent movement |
| Joint cover | Install without restraining movement |
| Inspection | Check continuity before concealment |

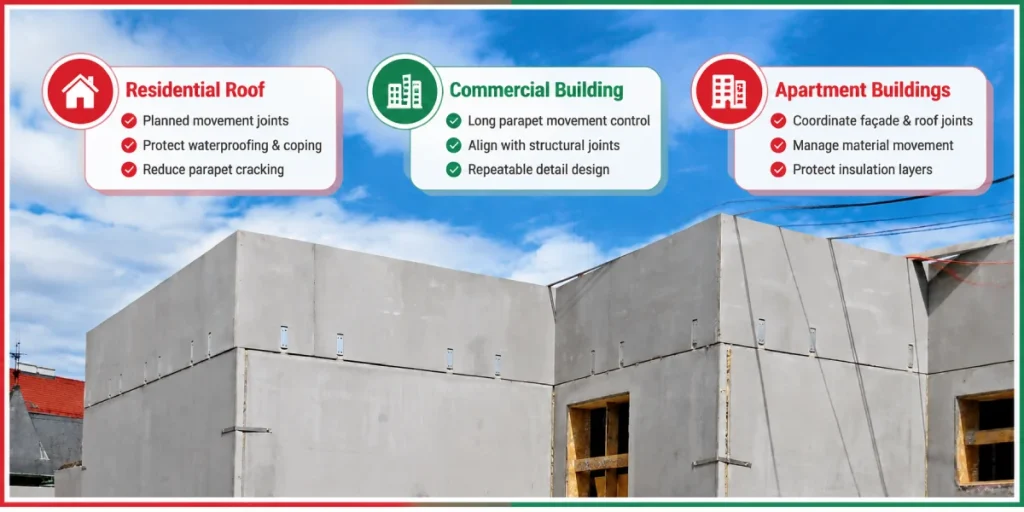

Real Construction Examples
The following examples are illustrative design scenarios. Actual joint dimensions, spacing and movement capacity must be calculated for the specific structure, materials and applicable requirements.
Residential Flat Roof
Consider a two-storey residence with an approximately 15 m long masonry or concrete parapet and a parapet wall detail for a flat roof.. The roof membrane terminates at the inner face of the parapet, while metal coping protects the top.
If the parapet is continuous and highly restrained, temperature changes and material shrinkage can create cracking at weak points. A movement strategy can instead divide the construction at a planned location and carry that separation through the waterproofing and coping.
The architectural impact can be kept small with an appropriately selected cover or coping detail. The important point is that the joint remains functional rather than being filled with rigid mortar or sealant that cannot accommodate the calculated movement.
Commercial Building
A commercial building with a long roof perimeter presents a different challenge. A 100 m or more parapet may contain several structural zones, façade interfaces and roof penetrations.
If the building already has structural expansion joints, those joints should be considered when developing the roof and parapet detail. Continuing the movement line through the roof edge can prevent the envelope from restraining the structure.
Because the same detail may be repeated several times, consistency is important. A standardised joint detail can reduce site interpretation and make inspection easier.
Apartment or Mixed-Use Building
An apartment building may combine concrete slabs, masonry infill, external insulation, balconies and roof parapets. Different parts of the envelope may therefore move at different rates.
A roof-to-wall expansion joint may need to continue through the façade and parapet while also accommodating waterproofing and insulation. The joint should be coordinated before façade finishes are selected.
Where the roof edge is constructed from prefabricated elements, the connection strategy should be reviewed carefully to ensure that the system can accommodate structural movement rather than simply transferring it into the adjacent waterproofing.
Common Parapet Expansion Joint Mistakes
One of the most common mistakes is creating a joint in the structural parapet but failing to continue it through the waterproofing. Water then finds the unprotected discontinuity.
Another mistake is filling the movement gap with rigid mortar, concrete, grout or an unsuitable sealant. This can prevent the joint from opening and closing as intended, transferring movement stresses into the surrounding construction.
A third problem is treating the coping as an independent architectural component. If the coping bridges the joint rigidly, movement can cause cracking, distortion or detachment.
| Mistake | Consequence | Corrective Principle |
| Waterproofing bridges joint rigidly | Membrane damage | Use movement-capable waterproofing |
| Joint filled with mortar | Movement restrained | Maintain designed separation |
| Rigid coping connection | Cracking or distortion | Detail coping for movement |
| Incorrect sealant | Premature failure | Specify compatible movement sealant |
| Joint cover fixed on both sides rigidly | Restrained movement | Follow movement-system design |
| Insulation bridges joint | Thermal and movement issue | Maintain planned separation |
| Joint location ignored during façade design | Visible cracking | Coordinate early |
Parapet Expansion Joint Cost
The cost of a movement joint depends on its width, length, movement capacity, waterproofing system, cover arrangement and accessibility.
A basic joint may require relatively few components, while a roof expansion joint with high movement, complicated waterproofing and a visible architectural finish can require proprietary systems and specialist installation.
It is also important to consider lifecycle cost. A low-cost joint that repeatedly fails can generate membrane repairs, façade repairs and internal water damage. A correctly designed system may therefore have a higher initial cost but lower maintenance exposure.
| Cost Factor | Effect on Project Cost |
| Joint length | More material and installation |
| Movement capacity | May require specialist system |
| Waterproofing complexity | Higher detailing cost |
| Visible cover | Architectural finishing cost |
| Difficult access | Increased labour |
| Existing building retrofit | Higher disruption |
| Maintenance access | Long-term cost consideration |
Traditional vs Prefabricated Parapet Movement Systems
Traditional parapets are usually constructed and jointed on site. This provides flexibility but means that joint position, width, waterproofing and finishing depend significantly on site coordination.
Prefabricated systems can move some of the precision work into controlled manufacturing conditions. Where the parapet is designed as a repeatable component, factory-controlled dimensions can make interfaces more predictable.
However, prefabrication does not eliminate movement design. The connections between prefabricated sections and the building structure still need to accommodate the expected movement.
| Factor | Traditional Site Construction | Prefabricated System |
| Joint formation | Site controlled | Factory/system controlled |
| Dimensional consistency | Workmanship dependent | Greater factory precision |
| Site labour | Higher | Potentially reduced |
| Weather exposure | Greater | Reduced fabrication exposure |
| Waterproofing interface | Site coordination | Can be system-integrated |
| Movement control | Detail-dependent | Designed into system |
| Programme | More site variables | Potentially more predictable |
| Adaptability | High | Depends on system |
Overtec and Movement-Controlled Parapet Construction
Overtec’s prefabricated approach is relevant where a project is looking to reduce the amount of conventional parapet construction carried out on site. Factory production can provide more controlled dimensions and reduce the number of repetitive operations required at the roof edge.
This can help reduce site labour and dependence on highly skilled labour for repetitive parapet work. Faster installation can also reduce the period during which the roof edge is exposed to changing weather conditions.
From a movement perspective, the key question remains how the complete system is connected to the building. A prefabricated parapet should not be considered successful merely because it is factory-made; the connection, waterproofing and movement interfaces must still be engineered for the project.
Overtec states benefits including up to 67% lower CO₂, factory precision, improved quality consistency, parapet thermal bridging and reduced construction risk. The 67% figure is a company claim and should be assessed using the project’s own comparison basis and environmental assessment methodology.
| Potential Overtec Benefit | Relevance to Roof-Edge Construction |
| Faster installation | Shorter site construction period |
| Reduced site labour | Fewer repetitive operations |
| Reduced skilled-labour dependency | Less reliance on specialised site workmanship |
| Factory precision | Consistent component dimensions |
| Better quality consistency | Controlled manufacturing process |
| Waterproofing integration | Better coordination of envelope interfaces |
| Reduced thermal bridging | Opportunity for controlled insulation continuity |
| Reduced weather dependency | Less fabrication carried out outdoors |
| Lower construction risk | Fewer uncontrolled site variables |
| Improved lifecycle performance | Potentially more consistent envelope performance |
| Slim profile | Can preserve space where geometry permits |
| Usable balcony/terrace space | Potential benefit where reduced edge thickness applies |
| CO₂ reduction | Overtec states up to 67% lower CO₂ |
| Project predictability | More controlled manufacturing and installation |
The system should still be assessed against structural movement, fire safety, waterproofing, thermal performance, wind loading and local construction requirements. Prefabrication is a method of controlling construction, not a substitute for engineering.
Parapet Expansion Joint Design Checklist
Architect Checklist
Confirm whether the building contains structural movement joints and establish whether they continue through the roof and parapet. Show the movement line clearly in the architectural sections.
Coordinate the joint with coping, façade finishes, waterproofing and visible architectural elements. Avoid leaving the movement joint as a late-stage roofing detail.
Construction Checklist
Verify the joint width before installing finishes. Keep mortar, adhesive, insulation and other rigid materials out of the designed movement zone.
Confirm that waterproofing and flashing can accommodate the specified movement. Photograph the completed joint before concealment where appropriate.
Inspection Checklist
Inspect both sides of the joint for cracking, rigid bridging and incomplete waterproofing. Check the joint cover for correct fixing and movement clearance.
After installation, inspect sealants and exposed covers for discontinuity, deformation or poor adhesion. Maintenance inspections should pay particular attention to joints because they are intentionally exposed to repeated movement.
Standards and Technical Requirements
The design of a movement joint should follow the structural, waterproofing and building-envelope requirements applicable to the project location. European projects may involve relevant EN standards, Eurocodes and national provisions such as DIN requirements.
Projects using the IBC framework may also need to coordinate structural movement, fire resistance, roof construction and other applicable provisions. OSHA requirements may apply to worker protection during roof-edge construction in the United States.
There is no universal parapet expansion-joint width or spacing that can safely be applied to every building. The required movement capacity depends on the structural system, materials, temperature range, joint length and expected deformation.
This article is educational guidance rather than project-specific engineering or legal advice. The final joint should be designed, reviewed and approved by the appropriate structural and building-envelope professionals.
FAQs About Parapet Expansion Joints
A parapet expansion joint is a deliberately designed separation that allows adjacent parapet sections to accommodate relative movement without uncontrolled cracking or structural restraint.
No. The requirement depends on the building structure, parapet length, materials, geometry and expected movement.
Temperature changes, concrete shrinkage, structural deflection, settlement and differential movement between materials can all contribute.
It normally requires a movement-capable waterproofing arrangement that remains watertight while allowing the joint to open and close.
A movement joint should not be filled with rigid material if doing so prevents the movement for which the joint was designed.
It is a movement joint located at or continuing through the roof parapet, often as part of a larger structural movement joint.
It is a protective or architectural component installed over the movement zone to protect it while allowing relative movement.
It can, but the coping must be specifically detailed to accommodate movement. A rigid connection can restrain the joint or become damaged.
A construction joint primarily separates stages of construction. An expansion or movement joint is deliberately designed to accommodate relative movement.
There is no universal width. It should be determined from the calculated movement and the selected joint system’s movement capacity.
Yes. Poor waterproofing continuity, incompatible sealants, damaged membranes or incorrect joint covers can all create leakage.
Its location should respond to the building’s structural movement strategy, geometry, materials and expected deformation rather than an arbitrary spacing rule.
They can, provided their structural connections and envelope interfaces are specifically designed for the expected movement.
Conclusion: Designing a Reliable Parapet Expansion Joint
A parapet expansion joint is not simply a gap in a wall. It is a coordinated building-envelope detail that must accommodate movement while preserving structural performance, waterproofing, weather resistance and architectural finish.
The most important design principle is continuity. If a structural movement joint exists, the movement strategy should be carried through the roof, parapet, waterproofing, flashing, coping and relevant façade systems rather than stopping at one layer.
The joint width and spacing should be based on the actual movement expected from the building. Temperature changes, shrinkage, structural deflection and differential movement all need to be considered.
Waterproofing deserves particular attention because the movement zone deliberately interrupts rigid construction. Flexible membranes, compatible sealants, flashing and appropriate joint covers need to work together rather than being selected independently.
For projects seeking faster and more controlled parapet construction, prefabricated systems can reduce site operations and improve manufacturing consistency. Overtec states additional benefits including reduced labour dependency, factory precision, reduced thermal bridging and up to 67% lower CO₂ emissions, subject to project-specific verification.
A successful roof parapet movement joint is therefore one where structure, movement, waterproofing, insulation and construction sequence have been designed as one system. When that coordination happens early, the joint becomes a controlled part of the building rather than a recurring source of cracking and water-ingress problems.
