A masonry parapet is one of the oldest and most widely used roof-edge constructions in architecture. Even today, it remains common in residential buildings, commercial structures, institutional projects and heritage work because it combines visual solidity with familiar building methods. At first glance, it may look like a simple extension of a wall above the roof line. In reality, it is a highly exposed structural element that must resist water, wind, temperature changes and long-term movement.
The top of a masonry parapet is one of the most vulnerable points in the building envelope. It receives direct weather exposure and must be detailed carefully if the roof edge is to remain watertight. That is why masonry parapet design is never just about appearance. It is also about waterproofing, reinforcement, wall stability, thermal performance and maintenance over the life of the building.
Many parapet failures happen not in the field of the roof, but at the top edge of the wall, where cap flashing, coping, waterproofing and masonry meet. If the top is not protected correctly, moisture can enter the parapet wall, cause cracking or staining, and eventually affect the roof assembly below. This makes the parapet one of the most important details in the entire wall-roof transition.
This guide explains what a masonry parapet is, how it is constructed, why cap flashing matters, what reinforcement is used, what design issues should be checked early, and where masonry still performs well compared with newer prefabricated alternatives. The first half focuses on the fundamentals and technical details. The second half will cover real examples, common mistakes, cost, prefabricated comparison, Overtec options, checklists and FAQs.
Masonry Parapet at a Glance
| Topic | Quick Answer |
| What is a masonry parapet? | A parapet wall built from masonry units such as brick, block or stone, extending above the roof edge |
| Main purpose | Protect the roof edge, provide architectural finish and support waterproofing details |
| Common components | Masonry wall, cap flashing, reinforcement, wall ties, waterproofing and coping |
| Main risk | Water ingress and cracking at the top of the wall |
| Typical use | Residential, commercial, institutional and heritage buildings |
| Key design issue | Stability, reinforcement and cap flashing at the exposed top edge |
A masonry parapet may look simple, but it is one of the most exposed wall elements in the building. That is why its detailing must be precise and durable.
What Is a Masonry Parapet?
A masonry parapet is a wall constructed from masonry materials that continues above the roof surface and forms the edge of the roof assembly.
The masonry may be brick, concrete block, stone, or a veneer system supported by another structural element. In some buildings, the parapet is load-bearing; in others, it is attached to a structural frame or roof deck.
Its role is both practical and architectural. It can conceal roof drainage, screen rooftop equipment, support the roof edge finish and give the building a more finished appearance. At the same time, it must remain structurally stable and resistant to moisture infiltration.
Because parapets are exposed on both sides to different conditions, they often need more careful design than ordinary walls. The outside face sees weather, while the inside face interfaces with the roof assembly and waterproofing system. That dual exposure is what makes masonry parapets technically important.
Why Masonry Parapets Matter
Masonry parapets matter because they sit at the boundary between wall and roof, and boundaries are where many building problems begin.
If the top of the parapet is not protected, water can enter the masonry and migrate downward. Over time, this can lead to cracking, efflorescence, freeze-thaw deterioration, and hidden moisture damage. Once moisture enters the parapet, repairs often become more complex because the problem is not always visible from the outside.
From an architectural standpoint, the parapet also shapes the roofline. It can create a clean, urban silhouette, hide rooftop services and improve the visual proportion of the façade. In heritage or traditional buildings, masonry parapets often preserve the original character of the architecture.
From a construction perspective, the parapet is a critical roof-edge element that must coordinate with roof waterproofing, flashing, wall ties, structural support and thermal movement. That is why a masonry parapet should be treated as a system, not a standalone wall extension.
Main Functions of a Masonry Parapet
A masonry parapet performs several functions at once. It is not just a wall above the roof.
Roof Edge Protection
The parapet creates a visible and physical edge at the roof perimeter.
This helps protect the roof system from wind uplift, weather exposure and accidental impact at the edge. On flat roofs, the roof perimeter is often the most vulnerable area, so a properly detailed flat roof parapet improves long-term performance.
When the parapet is designed well, it also reduces direct weather exposure to rooftop equipment and makes the roof edge look deliberate rather than unfinished.
Waterproofing Support
The roof membrane often terminates at or near the parapet.
That means the masonry parapet must work with the waterproofing system rather than against it. The transition from roof to wall is one of the most sensitive points in the envelope. If the waterproofing is not carried up and protected correctly, leaks can develop at the top edge or behind the wall finish.
A strong waterproofing masonry parapet detail is therefore essential for durability. The wall, flashing and membrane must be coordinated early in design.
Structural and Lateral Stability
Depending on the building, the parapet may be structurally supported by the roof deck, masonry wall below or a separate frame.
Because it extends above the roof, it is exposed to wind loads that are often greater than the loads on the wall below. That means reinforcement, anchorage and support conditions must be checked carefully.
A parapet that is not adequately braced or reinforced may crack, lean or fail over time, particularly in taller buildings or in exposed locations.
Architectural Finish
A masonry parapet can create a strong visual finish.
It gives the building a sense of completeness and can hide roof structures, drainage components and mechanical equipment. In some projects, the parapet is the key element that shapes the whole roofline.
For architects, this is one of the main reasons masonry remains attractive. It offers mass, continuity and a traditional material language that can suit many building types.
Types of Masonry Parapets
Different parapet types are used depending on structure, function and appearance.
| Type | Typical Application | Key Feature |
| Load-bearing masonry parapet | Small to medium buildings | Parapet wall carries its own load |
| Masonry veneer parapet | Framed buildings | Veneer supported by structural backup |
| Reinforced masonry parapet | Exposed or taller roofs | Additional strength and stability |
| Stone parapet | Heritage or premium architecture | Strong visual character |
| Brick parapet | Common in traditional façades | Continuity with masonry walls |
The correct type depends on the project’s structural system, exposure and aesthetic goals.
Masonry Parapet Wall Design Principles
Good masonry parapet wall design starts with the roof edge, not with the wall alone.
The parapet must be checked for structural stability, moisture resistance, thermal continuity, movement and maintenance access. A wall that looks good on paper can still fail if it does not handle water and movement correctly.
The top of the parapet is especially important because it is the first point of water entry. That is why masonry parapet design always needs a reliable cap flashing or coping solution. Without that, the wall is exposed to repeated wetting and drying cycles, which accelerate deterioration.
Comparison of Masonry Parapet Types
| Parapet Type | Strength | Moisture Resistance | Visual Character | Maintenance |
| Brick masonry parapet | Good | Medium | Traditional | Medium |
| Concrete block parapet | Good | Medium | Functional | Medium |
| Reinforced masonry parapet | Very good | Medium to good | Conventional | Medium |
| Stone parapet | Very good | Good | Premium | Low to medium |
| Veneer masonry parapet | Depends on backup | Medium | Flexible | Medium |
This comparison is useful during concept design, before the parapet wall construction is fully developed.
Masonry Parapet Detail
The masonry parapet detail is the section drawing that shows how the parapet connects to the roof and wall below.
That detail should show the masonry wall, the roof membrane, the cap flashing, movement joints, wall ties, insulation and any structural support below. It should also show how water is kept out of the wall and how the top is protected from direct weather exposure.
A good parapet detail is not simply a pretty drawing. It is a technical coordination tool. It prevents misunderstandings between architect, structural engineer, roofer and masonry contractor.
If this detail is missing or incomplete, the site team will often be forced to improvise. That is when most parapet defects begin.

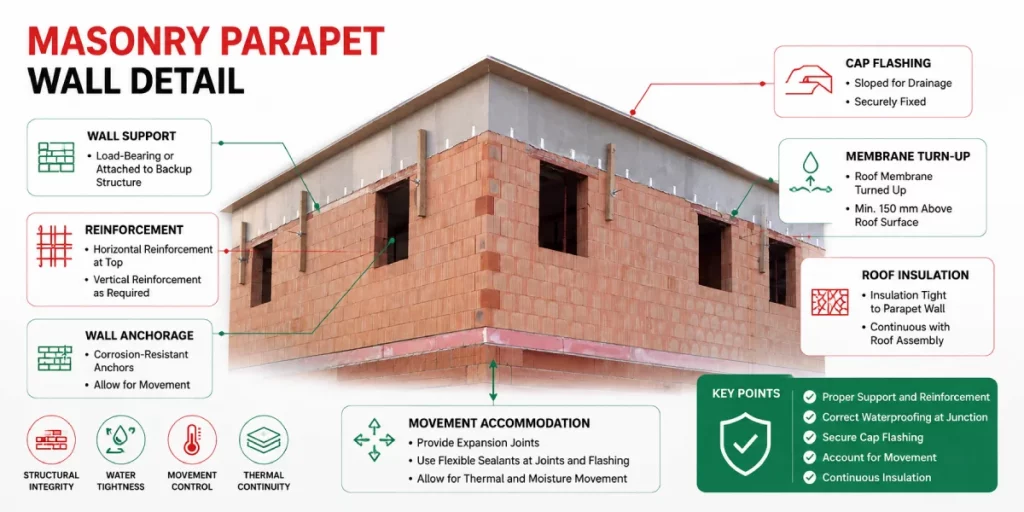

Masonry Parapet Wall Detail
The masonry parapet detail is especially important at the roof junction, particularly where the parapet meets the flat roof
It should explain how the wall is supported, where the reinforcement is placed, how the roof membrane is turned up, and how the cap flashing is fixed. It should also show the relationship between the parapet and the adjacent roof insulation.
A good detail will clarify whether the parapet is load-bearing or attached to a backup structure. That distinction matters because it affects both the structural design and the waterproofing approach.
The wall detail should also account for movement. Masonry expands and contracts with temperature and moisture, so joints and anchors must be detailed to accommodate that movement without cracking the parapet top.
Masonry Parapet Wall Details That Matter Most
Some details are more important than others.
| Detail Area | Why It Matters |
| Top of parapet | Most exposed to water and freezing |
| Roof-to-wall junction | Key waterproofing transition |
| Wall reinforcement | Stability under wind and movement |
| Anchors and ties | Structural support and load transfer |
| Coping or cap flashing | Weather protection for the top surface |
The top of the parapet is almost always the most vulnerable part of the assembly.
Waterproofing Masonry Parapet
Waterproofing is one of the most important issues in masonry parapet design.
The roof membrane typically needs to continue upward at the parapet and terminate in a way that protects the wall from moisture entry. If the upper edge is not protected by cap flashing or coping, water can enter through the top and travel into the masonry.
The risk is higher in cold climates because water inside the masonry can freeze and expand. Over time, this can crack the wall or loosen mortar joints. That is why waterproofing masonry parapet details must protect both the top and the roof interface.
A successful waterproofing strategy generally requires:
- a continuous roof membrane
- secure termination at the wall
- a protective top cap or coping
- drainage control at the roof edge
- movement accommodation
Masonry Parapet Cap Flashing
The masonry parapet cap flashing is the protective cap or flashing system installed at the top of the parapet.
Its purpose is to shed water away from the wall and protect the masonry below. Without it, the wall top remains exposed and vulnerable to water penetration.
Cap flashing may be made from metal or formed from masonry-compatible materials depending on the design. The key requirement is that it should be durable, sloped, and detailed to prevent water from running down the wall face.
A good cap flashing system must also account for movement. Rigid details can crack or open at joints, especially in exposed locations.
Masonry Parapet Cap Flashing Detail
The masonry parapet cap flashing detail should show how the flashing is fixed, how it overlaps, how it sheds water and how it connects to the waterproofing below.
This detail often includes a slope to one or both sides, a drip edge, end laps and fastening points. The exact geometry depends on the material and roof design.
If the detail is too flat, water may pond. If the joints are poorly sealed, water may enter through the flashing itself. That is why the detail must be designed with drainage and movement in mind.
Masonry Parapet Cap and Coping
The terms coping and cap flashing are often used together, but they can mean slightly different things depending on the project.
| Term | Common Meaning |
| Masonry parapet cap | General top protective element |
| Masonry parapet coping | Formed top cover of the parapet wall |
| Cap flashing | Metal or formed flashing used to protect the top edge |
| Coping stone | Heavy stone cover used on traditional masonry parapets |
Whatever the term used, the objective remains the same: protect the parapet top from weather and water entry.
Reinforcement in Masonry Wall Parapet
Because parapets are exposed to wind and weather, reinforcement is often needed.
The exact reinforcement strategy depends on wall height, material, exposure and support conditions. Some parapets are reinforced within the wall; others use ties, anchors or bracing systems to improve stability.
| Reinforcement Method | Typical Use |
| Vertical reinforcement | Resists bending and cracking |
| Horizontal reinforcement | Improves wall continuity |
| Anchors/ties | Connect parapet to backup structure |
| Crown reinforcement | Strengthens the top zone |
| Bracing detail | Supports exposed parapet sections |
Reinforcement is especially important where the parapet is tall, isolated or exposed to high wind loads.
Maximum Height of a Masonry Parapet
How tall a masonry parapet can be depends on the structural system, reinforcement, support conditions and local code requirements.
An unreinforced parapet is generally more limited than a reinforced one. The more exposed and taller the parapet becomes, the more important structural analysis and bracing become.
| Condition | Structural Implication |
| Unreinforced masonry parapet | Height is more limited |
| Reinforced masonry parapet | Taller and more stable |
| Free-standing masonry parapet wall | Requires careful support and bracing |
| Parapet attached to masonry wall | Often more stable than standalone sections |
The safe height cannot be determined by appearance alone. It must be calculated and checked against the governing building code and structural design criteria.
Bonded Masonry Parapet Detail
A bonded masonry parapet detail refers to how the parapet ties into the wall below and how the masonry units are interlocked.
This matters because a parapet that is not properly bonded may separate, crack or become unstable under wind or thermal movement. Bonding and anchorage are therefore essential to long-term performance.
The detail should also clarify how brick ties, mortar joints and structural support work together with the roof edge. Without that coordination, the parapet becomes vulnerable even if the individual materials are strong.
Masonry Wall with Brick Ties and Parapet Details
When a masonry parapet is part of a cavity wall or brick veneer system, brick ties become critical.
| Component | Purpose |
| Brick ties | Connect veneer to backup wall |
| Backup wall | Structural support |
| Parapet top | Weather-exposed edge |
| Flashing | Prevents moisture migration |
| Weep system | Allows drainage from the cavity |
A parapet tied into a wall system must still be protected at the top. Brick ties alone do not solve waterproofing problems.
First Look at Masonry Strengthening
A masonry parapet may need strengthening if it is tall, old, cracked or exposed.
Strengthening can involve reinforcement, improved anchorage, crown reinforcement or partial rebuilding. In some cases, strengthening may also be required due to changes in roof use, wind exposure or code updates.
The design challenge is to improve stability without compromising the building’s appearance or roof waterproofing. That is why strengthening should always be designed by qualified professionals.
Comparing Masonry Parapets With Other Roof Edge Approaches
| Factor | Masonry Parapet | Prefabricated Roof Edge |
| Structural weight | High | Lower |
| Construction speed | Slower | Faster |
| Moisture sensitivity | Moderate to high | Lower |
| Maintenance | Medium | Lower |
| Design flexibility | Traditional | High |
| Detail precision | Site dependent | Factory controlled |
Masonry still has strengths, especially in traditional architecture, but modern roof edge systems can offer better control and predictability in many projects.
Initial Design Checklist for Masonry Parapets
| Design Item | Check |
| Wall support verified | ✓ |
| Height checked | ✓ |
| Reinforcement considered | ✓ |
| Waterproofing coordinated | ✓ |
| Cap flashing designed | ✓ |
| Drainage route clear | ✓ |
| Movement joints planned | ✓ |
| Roof-edge detail complete | ✓ |
| Maintenance access considered | ✓ |
| Material exposure reviewed | ✓ |
A good parapet design always begins with the roof edge detail, not with the wall finish.
Real Construction Example – Residential Brick House
A two-story brick residence features a traditional masonry parapet wall surrounding a flat roof. The architect selected brick to maintain visual continuity with the façade while concealing rooftop drainage and mechanical equipment.
The parapet extends approximately 700 mm (28 inches) above the finished roof level and is reinforced with horizontal joint reinforcement and vertical steel bars anchored into the reinforced concrete roof ring beam. The roof membrane is turned up the inside face of the parapet and protected by termination bars before being covered by an aluminum cap flashing.
The parapet top is finished with a sloped masonry parapet cap incorporating drip edges on both sides to prevent water from running down the brick façade.
Typical Construction
| Component | Specification |
| Wall material | Clay brick masonry |
| Height | 700 mm |
| Reinforcement | Horizontal joint reinforcement + vertical rebars |
| Coping | Aluminum cap flashing |
| Waterproofing | Roof membrane turned up parapet |
| Roof insulation | Continuous thermal insulation |
This arrangement improves durability while preserving the traditional architectural appearance.

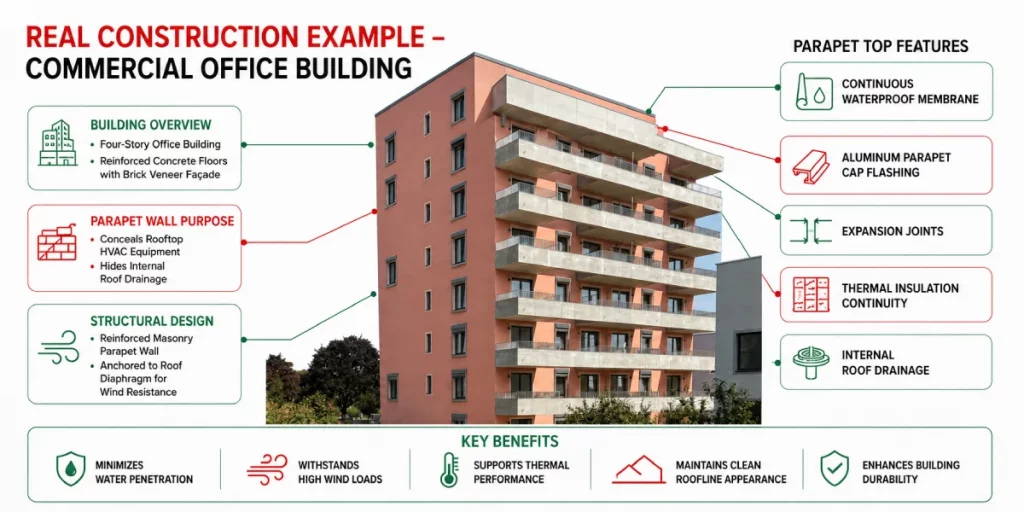

Real Construction Example – Commercial Office Building
A four-story office building uses reinforced concrete floors with brick veneer façade walls.
Instead of leaving the roof edge exposed, the architect designed a masonry parapet wall detail that conceals rooftop HVAC equipment and internal roof drainage.
Because the building experiences significant wind loads, engineers designed reinforced masonry with structural anchors connecting the parapet to the roof diaphragm.
The top of the parapet incorporates:
- Continuous waterproof membrane
- Aluminum masonry parapet cap flashing
- Expansion joints
- Thermal insulation continuity
- Internal roof drainage
This detail minimizes water penetration while maintaining the clean roofline preferred in contemporary commercial architecture.
Real Construction Example – Heritage Masonry Building
Historic masonry buildings frequently include stone parapets that have remained in service for decades or even centuries.
During renovation, engineers often discover:
- Cracked mortar joints
- Missing coping stones
- Corroded embedded steel
- Water infiltration
- Freeze-thaw damage
Rather than replacing the parapet entirely, restoration commonly includes:
- Masonry repointing
- Crown reinforcement
- Stone coping replacement
- Improved waterproofing
- New flashing concealed beneath traditional coping
This approach preserves the building’s architectural character while significantly improving long-term durability.
Masonry Parapet Strengthening
Many existing masonry parapets require strengthening due to:
- Increased wind requirements
- Building renovations
- Rooftop equipment additions
- Seismic upgrades
- Age-related deterioration
Common strengthening methods include:
- Vertical reinforcing bars
- Steel angles
- Concrete bond beams
- Crown reinforcement
- External steel bracing
- Structural anchors
- Wall ties
- Partial rebuilding
Strengthening should always address the cause of deterioration rather than only repairing visible cracks.
Waterproofing Challenges
Water remains the primary cause of masonry parapet deterioration.
Typical moisture pathways include:
- Cracked coping joints
- Failed cap flashing
- Open mortar joints
- Improper roof membrane termination
- Missing drip edges
- Poor drainage
Water entering the parapet may cause:
- Efflorescence
- Corrosion
- Brick spalling
- Freeze-thaw damage
- Mold
- Interior leakage
Proper waterproofing requires treating the parapet as part of the entire roof envelope rather than as a separate wall.
Common Masonry Parapet Problems
| Problem | Cause | Solution |
| Cracked coping | Thermal movement | Flexible joints and proper detailing |
| Water penetration | Poor flashing | Continuous cap flashing |
| Efflorescence | Moisture migration | Waterproofing improvements |
| Leaning parapet | Inadequate reinforcement | Structural strengthening |
| Brick deterioration | Freeze-thaw cycles | Water management and repair |
| Mortar failure | Weather exposure | Repointing |
| Thermal bridging | Interrupted insulation | Continuous insulation |
| Corrosion | Water ingress | Moisture control and replacement of damaged steel |
Cost Considerations
The cost of a masonry parapet depends on several variables rather than a single price per meter.
Major cost factors include:
- Wall height
- Wall thickness
- Masonry material
- Reinforcement
- Coping material
- Waterproofing complexity
- Scaffolding
- Architectural detailing
- Local labor costs
Lifecycle costs should also include:
- Inspection
- Repointing
- Waterproofing repairs
- Coping replacement
- Flashing maintenance
Although masonry offers long service life, maintenance costs should not be ignored during project planning.
Masonry vs Prefabricated Roof Edge Systems
| Criteria | Traditional Masonry Parapet | Prefabricated Roof Edge |
| Construction speed | Slow | Faster |
| Structural weight | High | Lower |
| Site labor | High | Reduced |
| Skilled labor requirement | High | Lower |
| Factory precision | No | Yes |
| Waterproofing integration | Complex | Simplified |
| Thermal bridging | Higher | Reduced |
| Weather dependency | High | Lower |
| Construction quality consistency | Variable | Factory controlled |
| Lifecycle performance | Good | Improved |
| Construction risk | Higher | Lower |
| Future maintenance | Medium | Lower |
| CO₂ footprint | Higher | Up to 67% lower (depending on system) |
Design Considerations
Structural Stability
The parapet must safely resist:
- Wind pressure
- Wind suction
- Maintenance loads
- Thermal movement
- Differential settlement
Structural calculations become increasingly important as parapet height increases.
Thermal Performance
Parapets often interrupt roof insulation.
Continuous insulation helps reduce:
- Thermal bridging
- Interior condensation
- Heat loss
- Moisture accumulation
Modern roof designs typically integrate parapet insulation with the overall roof envelope.
Movement Joints
Masonry expands and contracts with temperature and moisture changes.
Proper movement joints help prevent:
- Cracking
- Coping displacement
- Flashing failure
- Water infiltration
Ignoring movement is one of the most common design mistakes in masonry parapets.
Applicable Standards and Codes
Although requirements vary by jurisdiction, designers commonly reference:
| Standard | Relevance |
| IBC | Building envelope and structural requirements |
| TMS 402/602 | Masonry design and construction |
| Eurocode 6 | Masonry structures |
| EN Standards | Construction products and performance |
| Local Building Codes | Project-specific compliance |
Roof waterproofing should always follow the manufacturer’s recommendations together with local building regulations.
Architect & Design Checklist
| Item | Status |
| Structural design completed | ✓ |
| Parapet height verified | ✓ |
| Reinforcement detailed | ✓ |
| Roof membrane coordinated | ✓ |
| Cap flashing specified | ✓ |
| Thermal insulation continuous | ✓ |
| Movement joints designed | ✓ |
| Drainage reviewed | ✓ |
| Maintenance access considered | ✓ |
| Material compatibility verified | ✓ |
Construction Checklist
| Inspection Item | Purpose |
| Masonry alignment | Structural quality |
| Reinforcement placement | Stability |
| Wall ties installed | Anchorage |
| Waterproof membrane continuity | Leak prevention |
| Flashing installation | Weather protection |
| Coping slope | Water runoff |
| Joint sealing | Moisture resistance |
| Final inspection | Long-term durability |
Modern Roof Edge Solutions with Overtec
While masonry parapets remain suitable for many buildings, modern prefabricated roof edge systems provide an alternative approach where construction speed, consistency and sustainability are priorities.
Compared with traditional site-built masonry, engineered prefabricated parapet systems can provide:
| Criteria | Conventional Masonry | Prefabricated Solution |
| Installation speed | Standard | Faster |
| CO₂ emissions | Higher | Up to 67% lower |
| Site labor | High | Reduced |
| Skilled labor dependency | High | Lower |
| Factory precision | Limited | High |
| Quality consistency | Variable | Factory controlled |
| Waterproofing integration | Complex | Simplified |
| Thermal bridging | Greater | Reduced |
| Weather dependency | High | Lower |
| Lifecycle performance | Good | Improved |
| Construction risk | Higher | Lower |
| Slim profile | Conventional | Optimized |
| Usable terrace/balcony space | Standard | Potentially increased through slimmer parapet profiles |
| Project predictability | Moderate | Higher |
Because prefabricated parapet systems can be engineered with slimmer and more efficient profiles, projects may also benefit from improved usable terrace or balcony space compared with conventional site-built parapet solutions.
This does not replace masonry in every project, but it provides designers with another option where speed, precision and long-term building-envelope performance are important.
Frequently Asked Questions
A masonry parapet is a brick, block or stone wall extending above the roof edge to provide protection, architectural definition and support for roof waterproofing.
It protects the roof perimeter, conceals rooftop equipment, supports waterproofing details and enhances the appearance of the building.
It is the construction drawing showing how the parapet connects to the roof, waterproofing, flashing, insulation and supporting structure.
Cap flashing protects the top of the parapet from rainwater and helps prevent moisture entering the masonry.
The most common causes are water infiltration, inadequate reinforcement, poor flashing, freeze-thaw damage and thermal movement.
The roof membrane is extended up the parapet, protected with flashing or coping, and coordinated with drainage and movement joints.
Yes. Vertical reinforcement, horizontal reinforcement, bond beams, wall ties and anchors are commonly used.
The allowable height depends on structural design, reinforcement, wall thickness, wind loads and local building codes.
Yes. Masonry remains common in residential, institutional, commercial and restoration projects, although prefabricated systems are increasingly used where faster installation and improved quality control are desired.
They can reduce site labor, improve factory quality, simplify waterproofing integration, reduce thermal bridging, lower construction risk, achieve up to 67% lower CO₂ emissions, improve project predictability and provide slimmer profiles that may increase usable terrace or balcony space.
Conclusion
A masonry parapet remains one of the most durable and architecturally significant roof-edge solutions when it is properly designed and detailed. However, long-term performance depends far more on waterproofing, reinforcement, cap flashing, movement accommodation and structural support than on the masonry itself.
Successful parapet construction requires careful coordination between architects, structural engineers and roofing specialists. By integrating robust detailing with continuous waterproofing and appropriate reinforcement, masonry parapets can provide decades of reliable service. At the same time, modern prefabricated roof-edge systems offer an alternative for projects seeking faster installation, factory-controlled quality, reduced site labor, lower construction risk, improved lifecycle performance, reduced thermal bridging, up to 67% lower CO₂ emissions, and slimmer roof-edge profiles that can increase usable terrace or balcony space where appropriate.
